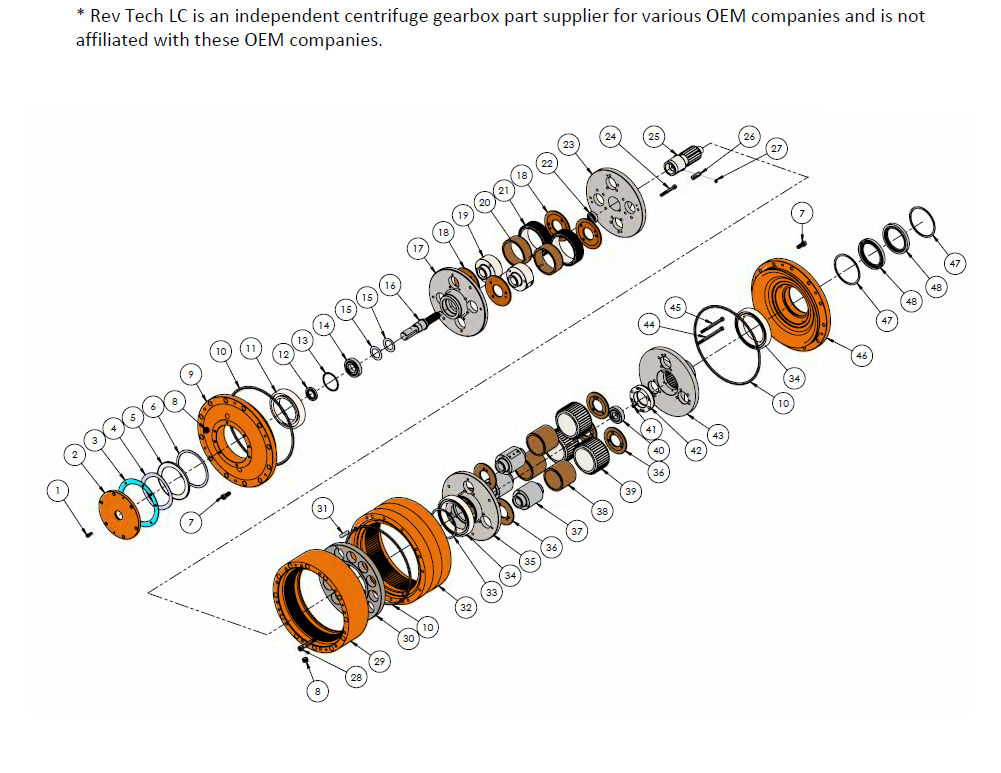

Sharples P-90

ITEM#
PART#
DESCRIPTION
QTY
ITEM#
PART#
DESCRIPTION
QTY
1
320300
SHCS 5/16" -18 x 7/8"
6
23
322106
1ST STAGE INNER PLATE
1
2
320100
SEAL CAP
1
24
322200
SHCS 1/2" - 13 x 3- 1/4"
25
3
320200
GASKET
1
25
322102
2ND STAGE PINION (INSERTABLE)
1
4
150901
WAVY SPRING WASHER
1
26
322103
KEY
1
5
320902
WAVY SPRING RETAINER
1
27
322104
SET SCREW
1
6
320903
WAVY SPRING SPACER
1
28
322201
SHCS 1/2" - 13 x 4"
15
7
320600
SHCS 1/2" - 13 x 1 1/4"
24
29
322501
1ST STAGE RING GEAR CASE
1
8
320500
OIL PLUG
3
30
322503
CASE CENTER BEARING SUPPORT
1
9
320700
OUTSIDE COVER
1
31
322504
DOWEL PIN
10
320800
O'RING 456 H70
2
32
322502
2ND STAGE RING GEAR CASE
1
11
321000
BEARING 6022M
1
32-A
322500
RING GEAR CASE ASSEMBLY
1
12
150400
OIL SEAL
1
33
152700
SPIRAL LOCK RETAINER RR-500
1
13
321200
SPIRAL LOCK RETAINER RR-314
1
34
151000
BEARING 5" x 7"
2
14
321100
BEARING 6208
1
35
322800
2ND STAGE OUTER PLATE
1
15
151101
DISC SPRING
2
36
322900
2ND STAGE THRUST WASHER
6
16-A
322300
1ST STAGE PINION P-98
1
37
323000
2ND STAGE AXLE
3
16-B
322301
1ST STAGE PINION P-49
1
38
323200
2ND STAGE BRONZE BEARING
3
17
321302
1ST STAGE OUTER PLATE
1
39
323300
2ND STAGE PLANET GEAR
3
18-A
321402
1ST STAGE THRUST WASHER P-98
4
40
323600
BEARING 7306
1
18-B
322900
1ST STAGE THRUST WASHER P-49
4
41
323502
SHCS 1/4-20 x 1"
6
19-A
321500
1ST STAGE AXLE P-98
2
42
323501
SPLINE PLUG
1
19-B
321501
1ST STAGE AXLE P-49
2
43
323500
2ND STAGE COVER W/SPLINE
1
20-A
321700
1ST STAGE BRONZE BEARING P-98
2

44
322200
SHCS 1/2" - 13 x 5-3/4"
6
20-B
321701
1ST STAGE BRONZE BEARING P-49
2

45
323100
SHCS 1/2" - 13 x 5"
3
21-A
321800
1ST STAGE PLANET GEAR P-98
2

46
323800
INSIDE COVER
1
21-B
321801
1ST STAGE PLANET GEAR P-49
2

47
324100
SPIRAL LOCK RETAINER RR-525
2
22
322400
BEARING 7303
1

48
323900
OIL SEAL
2
