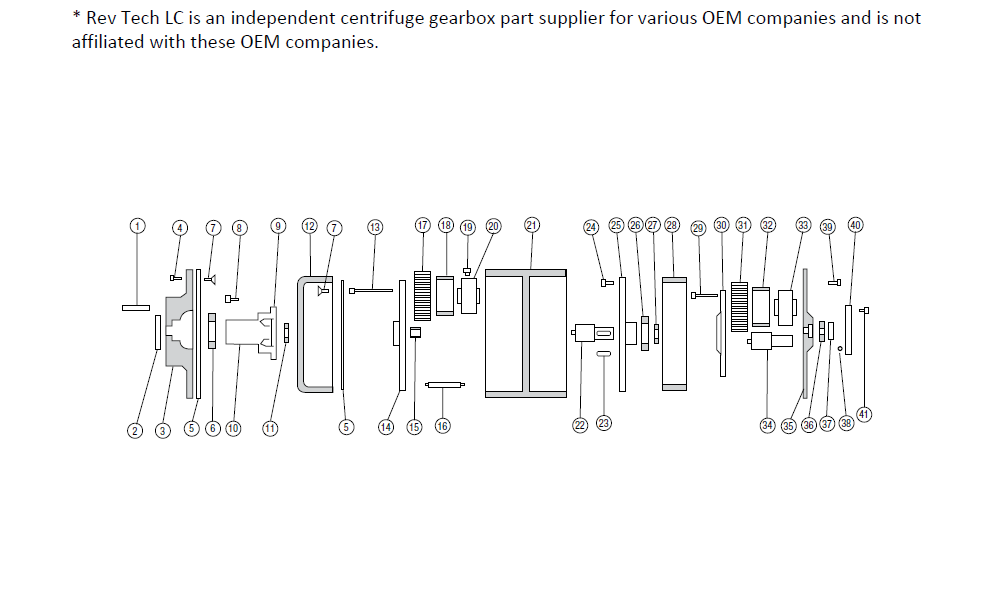

Bird SA-57

ITEM#
PART#
DESCRIPTION
QTY
ITEM#
PART#
DESCRIPTION
QTY
1
N/A
STUD 1" -8 x 3-3/4"
8
24
171001
SHCS 3/8" - 16 x 1 -1/4"
16
2
170200
OIL SEAL
1
25
N/A
1ST STAGE HOUSING
1
3
N/A
INSIDE COVER
1

26
172000
BEARING 6216
1
4
170601
SHCS 1/2" - 13 x 1 1/4"
24

27
172100
BEARING 6404
1
5
170500
BRONZE THRUST WASHER
2

28
171102
1ST STAGE RING GEAR 39:1
1
6
170300
BEARING NU 1036
1

28A
171103
1ST STAGE RING GEAR 82:1
1
7
170501
FH SHCS 1/4"- 20 x 5/8"
16

28B
171101
1ST STAGE RING GEAR 27:1
1
8
172801
SHCS 3/4"- 10 x 1- 1/4"
20

29
172701
SHCS 3/8" -16 x 3 - 1/2"
8
9
N/A
SPLINE SHAFT HUB
1

30
N/A
1ST STAGE GEAR PLATE
1
10
170100
SPLINE SHAFT
1

31-A
171302
1ST STAGE PLANET GEAR 39:1
2
11
173000
BEARING NU6216E
1

31-B
171302H
1ST STAGE PLANET GEAR 39:1 HIGH SPEED
2
12
170800
2ND STAGE RING GEAR
1

31-C
171303
1ST STAGE PLANET GEAR 82:1
2
13
172401
SHCS 3/8" - 16 x 5 - 1/2"
14

31-D
171301
1ST STAGE PLANET GEAR 27:1
2
14
N/A
2ND STAGE GEAR PLATE
1

32
171400
1ST STAGE BRONZE BEARING
2
15
173100
BEARING BR 243320
1

32-A
171400H
1ST STAGE BRONZE BEARING HIGH SPEED
2
15A
N/A
BRONZE BEARING
1

33
N/A
1ST STAGE AXLE
2
16
N/A
SUPPORT
2

34
171702
1ST STAGE PINION 39:1
1
16A
N/A
SUPPORT
2

34A
171703
1ST STAGE PINION 82:1
1
17
172600
2ND STAGE PLANET GEAR
2

34B
171701
1ST STAGE PINION 27:1
1
18
172500
2ND STAGE BRONZE BEARING
2

35
N/A
OUTSIDE COVER
1
19
172501
SHCS 3/8" - 16 x 1/2"
4

36
171900
BEARING 6407
1
20
N/A
2ND STAGE AXLE
2

37
171800
OIL SEAL
1
21
N/A
GEAR CASE
1

38
171500
O' RING 241 H70
1
22
172200
2ND STAGE PINION
1

39
171201
SHCS 3/8" - 16 x 1- 1/4"
24
22-A
172201
2ND STAGE PINION HIGH SPEED
1

40
171600
BEARING CAP
1
23
N/A
KEY
1

41
171601
SHCS 5/16'' -18-1''
6
